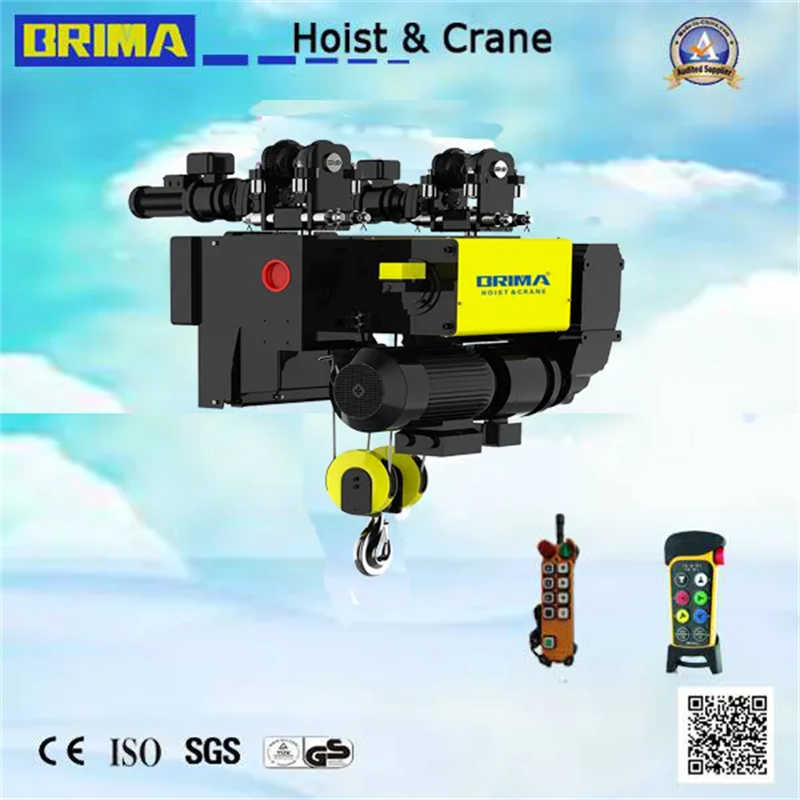

Brima Brand 15t Single Girder Electric Wire Rope Hoist with Germany Abm Motor
$2500.00 1 set
Qingdao Shanghai
L/C T/T
New
BMG-15S
CE, ISO9001
BRIMA
General manufacturing,Metal production industry,Renewable energy industry
Brima Brand 15t Single Girder Electric Wire Rope Hoist with Germany Abm Motor
Brima specialize in manufacturing BMG electric chain hoist, Europe type wire rope hoist, BM electric chain hoist, Crane geared motor, End carriage ,Manual chain hoist
Brima brand products include:
* BMG electric chain hoist from 125kg to 1ton
* Europe type wire rope hoist from 3.2ton to 80 ton
* BM electric chain hoist from 250 kg to 50ton
* Crane geared motor
* End carriage
* Manual chain hoist
Advantages:
1. Low headroom design, compact, strong, long service life span, save your space.
2. Three-in-one lifting motor: AMB Germany original imported. Column rotor, low noise.
3. Limit Switch: Cam limit model operate safety.
4. With load limiter protection.
5. Remote control avaliable.
New advantages:
1. Improved travelling motor: Lower noise, more effciency
2. Improved wire rope guider: Improved to engineering plastic material, lighter, less wear to wire rope
Capacity (kg) | Lifting height (m) | Model | m/min | KW | (m/min) | KW | FEM/ISO | FEM/ISO | H (mm) | C (mm) | B(mm) | ||
| 2000 | 6 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 |
| 9 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 | |
| 12 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 | |
| 15 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 | |
| 18 | BMG-2.0 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 | |
| 3200 | 6 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 |
| 9 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 | |
| 12 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 | |
| 15 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 | |
| 18 | BMG-3.2 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 210 | 556 | 150-300 | |
| 5000 | 6 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 |
| 9 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 | |
| 12 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 | |
| 15 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 | |
| 18 | BMG-5.0 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 | |
| 6300 | 6 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 |
| 9 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 | |
| 12 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 | |
| 15 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 | |
| 18 | BMG-6.3 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1M | M4 | 2M | M5 | 260 | 596 | 200-350 | |
