Tilt-Tpye Container Crane 9-10ton Capacity (BSTD300-400)

$25000.00
1 1
Qingdao
L/C T/T
New
BSTD300-400
CE, ISO9001
GP
General manufacturing,Container handling

Product Description

Product manual:
BSTD300-400Tilt-type container cranes (crane)
BSTD360-400 heightening type mobile container gantry crane is designed for small and
medium sized container yard domestic production, the lowest operating costs of one Container
crane (Container crane earth). In multi-cylinder diesel-powered car, with low noise, low
vibration characteristics of the vehicle.
The car lifting, running hydraulic system are controlled by a hydraulic motor driven walking.
Lifting with a diameter of 180 mm cylinder, lifting capacity, low pressure systems, hoisting fall
stable, safe, efficient loading and unloading. Each group consisted of two cranes, each is a
separate motor unit, each motor unit is two-wheel drive, four-wheel steering, the maximum
angle of 110 degrees, to achieve any angle of the steering and panning, small turning radius,
so flexible operation; two motor units are free to run, the pitch can be adjusted for a variety of
specifications of the container handling.
The car requires a flat, after the hardening, no potholes use of the site. Suitable for handling
logistics companies, warehouses, docks, container yard, container yard and other places, it is
a cheap, convenient and practical container lifting equipment.

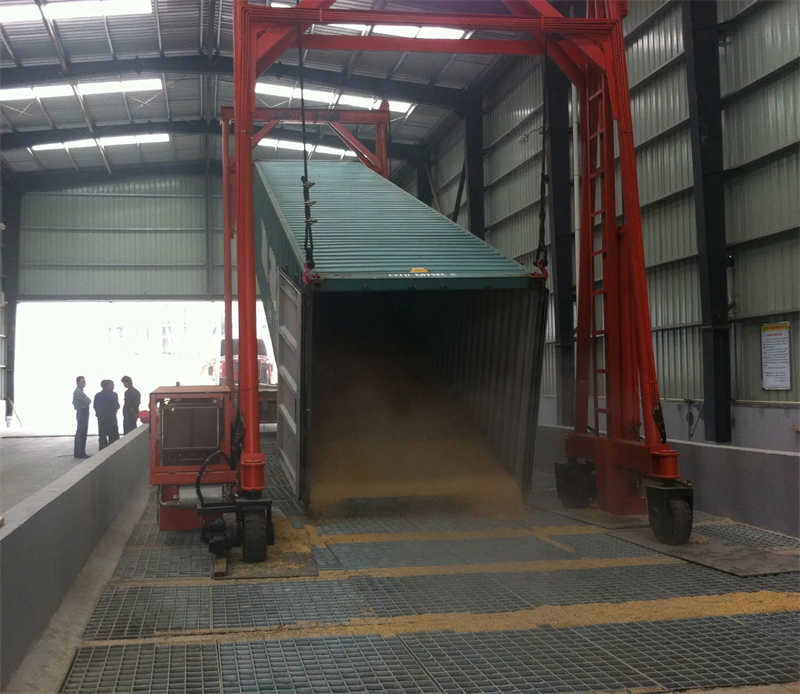

The car is designed to dump the cargo containers (including liquid, solid, etc. scattered), the
machine allows the maximum tilt angle of 20-foot container reaches 42 degrees, the maximum
tilt angle of 40-foot containers of up to 24 degrees.

Specifications
1model number
BSTD300BSTD360BSTD400
2total weightT99.510.1
3rated capacitykg 300003600040000
4max. steering speed(without load)km/h3.53.53.5
5min. passageway widthmm320032003200
6rated torque of hydraulic motorNm101010101010
7max.lifting speed (without load)mm/s353535
8max.falling speed (without load)mm/s252525
9max.lifting speed (with load)mm/s252525
10max.falling speed (with load)mm/s303030
11engine powerKw373737
12system pressureMpa141516
13rotation angle of turning wheel°110110110
Specifications of structure
14L*W*Hmm5055*3655*8320
15max. height of lifting beammm566056605660
16lowest height of lifting beammm227022702270
17The minimum groundmm110110110
Clearance
18Longitudinal trackmm320532053205
19crosswise treadmm372537253725
20inside width of crosswisemm3725/33803725/33803725/3380
