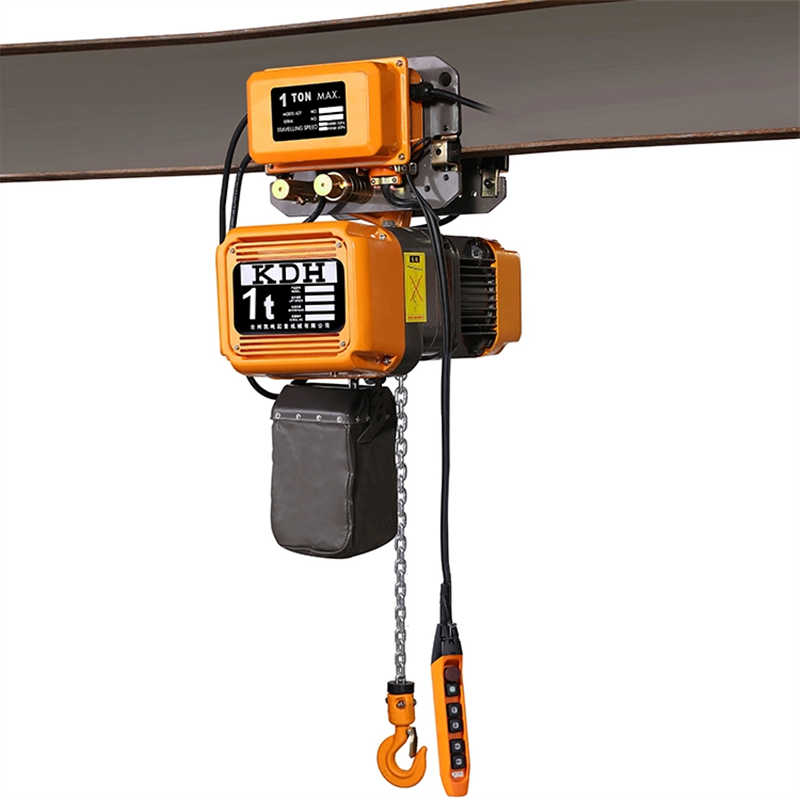

1ton Movable Motor Hoist Construction Hoist with Manual Trolley
$255.00 1 1
Qingdao
L/C T/T
New
HHBB
CE, ISO9001
KDH
General manufacturing,Metal production industry,Renewable energy industry
Product Description
Product Description
Performance contrast between EQ series and HHBB series :
1.Adapt to high frequency , high range task condition High level M5 working level , self with air cooling heat radiation
2.Prevent accidents in case of abnormal load, Self with friction clutch and Up / Down limit switch
Friction clutch can prevent the damage of hoist and loadchain from the overload and big ground lifting;Up & Down limit switch can prevent the damage of hoistand load chain from over rollo Friction cluth and Up / Down limit switch formed the doublesafety mechanism
3.Adapt to serious environment and task condition !Dust proof , jetting type body , protection level IP55
4.High performance and high mechanism of products guarantee by one time modeled body
Aluminum casting one time modeled body,Rigid body shell able to accordance with serious use environment and use condition simple one time modeled body structure , few parts , simple and convenient for maintain
Product Parameters
| Type | Capacity (Ton) | Lifting Height (M) | Lifting speed (m/min) | Lifting motor | Traveling motor | Grade | Package Size | Chain size (φ) | Net weight (kg) | Additional weight per 1m lifting height (kg) | |||||||
| High speed | Low speed | Power (Kw) | Rotation speed (r/min) | Phases | Voltage (V) | Frequency (Hz/s) | Power (Kw) | Rotation speed (r/min) | Traveling speed (m/min) | ||||||||
| EQ 01-01YS | 1t | 4 | 7 | 2.3 | 1.5 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11//21 | M5 | 68*34*52 | 7.1mm | 98 | 1.1 |
| EQ 02-01YS | 2t | 4 | 7 | 2.3 | 3.0 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11//21 | M5 | 76*39*58 | 10mm | 155 | 2.1 |
| EQ 02-02YS | 2t | 4 | 3.5 | 1.2 | 1.5 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11//21 | M5 | 68*40*55 | 7.1mm | 116 | 2.2 |
| EQ 03-01YS | 3t | 4 | 7 | 2.3 | 3.6 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11//21 | M5 | 76*39*58 | 11.2mm | 170 | 2.6 |
| EQ 03-02YS | 3t | 4 | 3.5 | 1.2 | 3.0 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11//21 | M5 | 76*45*60 | 10mm | 188 | 4.4 |
| EQ 05-02YS | 5t | 4 | 3.5 | 1.2 | 3.6 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11//21 | M5 | 76*49*61 | 11.2mm | 220 | 5.2 |
| Type | Capacity (Ton) | H(mm) | D(mm) | A(mm) | C(mm) | B(mm) | J(mm) | K(mm) | L(mm) | N(mm) | W(mm) | U(mm) | R(mm) | T(mm) | / | / |
| EQ 01-01Y | 1t | 440 | 310 | 300 | 610 | 291 | / | 42 | 32 | 17 | 240 | 120 | 220 | 230 | / | / |
| EQ 02-01Y | 2t | 540 | 350 | 320 | 710 | 308 | / | 49 | 40 | 24 | 240 | 125 | 220 | 230 | / | / |
| EQ 02-02Y | 2t | 575 | 320 | 310 | 610 | 291 | / | 49 | 40 | 24 | 240 | 125 | 220 | 230 | / | / |
| EQ 03-01Y | 3t | 620 | 360 | 330 | 710 | 308 | / | 59 | 48 | 34 | 240 | 130 | 220 | 230 | / | / |
| EQ 03-02Y | 3t | 700 | 440 | 330 | 710 | 308 | 59 | 48 | 34 | 240 | 130 | 220 | 230 | / | / | |
| EQ 05-02Y | 5t | 850 | 450 | 360 | 710 | 308 | / | 60 | 48 | 43 | 240 | 135 | 220 | 230 | / | / |

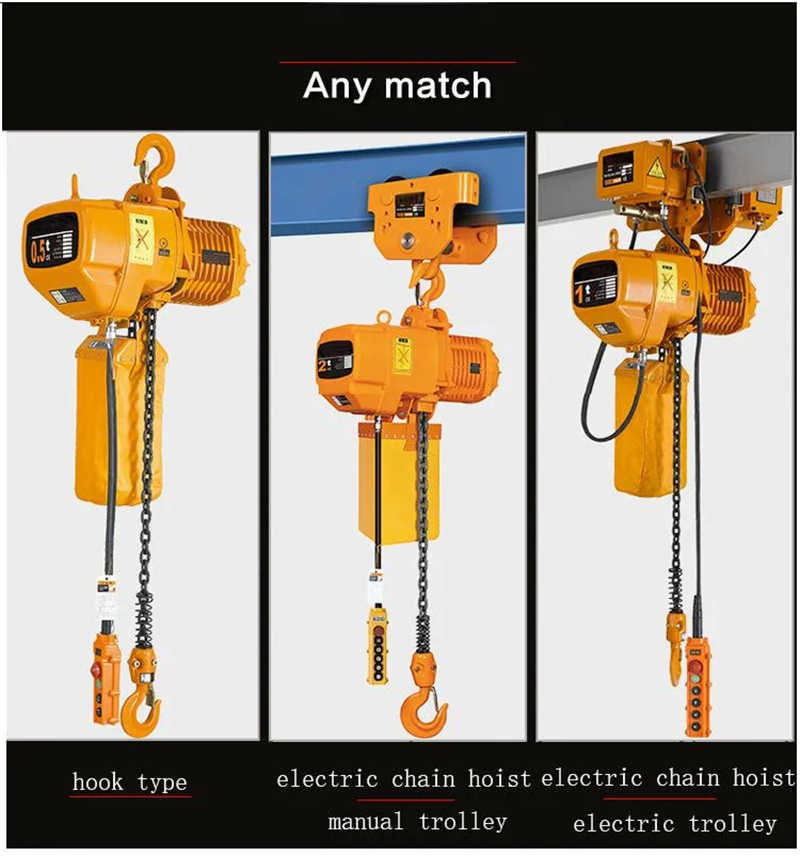

Manual trolley
| Type | Capacity (Ton) | A(mm) | G(mm) | J(mm) | E(mm) | P(mm) | Minimun radius of turn |
| STPC-0.5 | 0.5 | 200 | 130 | 91 | 50-102 | 163 | 1.2 |
| STPC-01 | 1 | 200 | 170 | 115 | 50-102 | 221 | 1.3 |
| STPC-02 | 2 | 218 | 205 | 138 | 68-130 | 265 | 1.3 |
| STPC-03 | 3 | 275 | 236 | 157 | 82-153 | 305 | 1.5 |
| STPC-05 | 5 | 275 | 280 | 178 | 82-153 | 332 | 1.7 |
Production Scenario
