10t-7.5m~30m Single Girder Electric Hoist Overhead Crane for Users
$12000.00 1 set
Qingdao Shanghai
L/C T/T
New
LD
CE, ISO9001
Kaiyuan
General manufacturing,Metal production industry,Renewable energy industry
PRODUCT DISPLAY

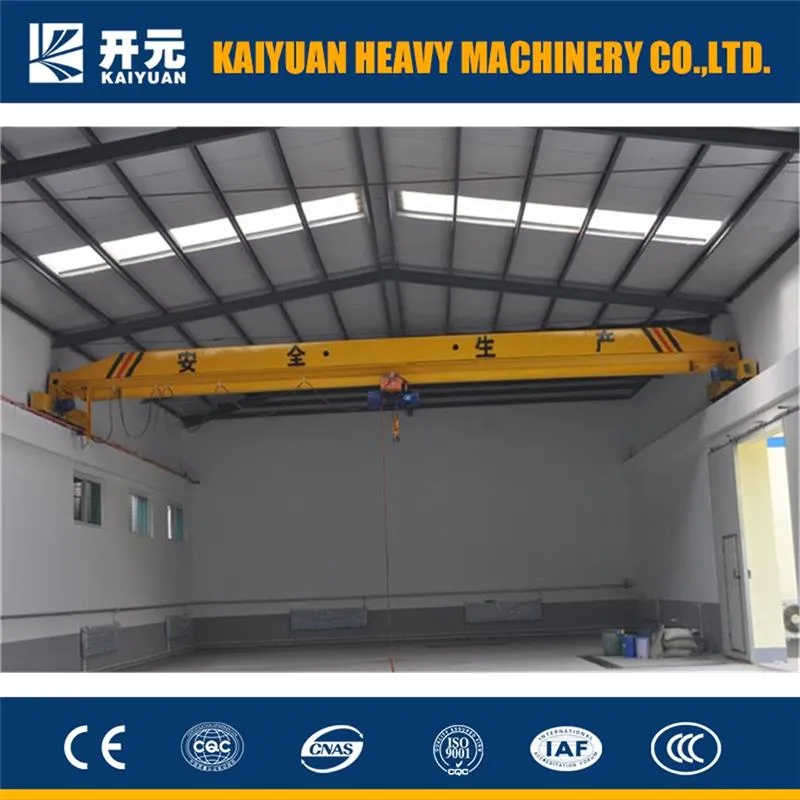

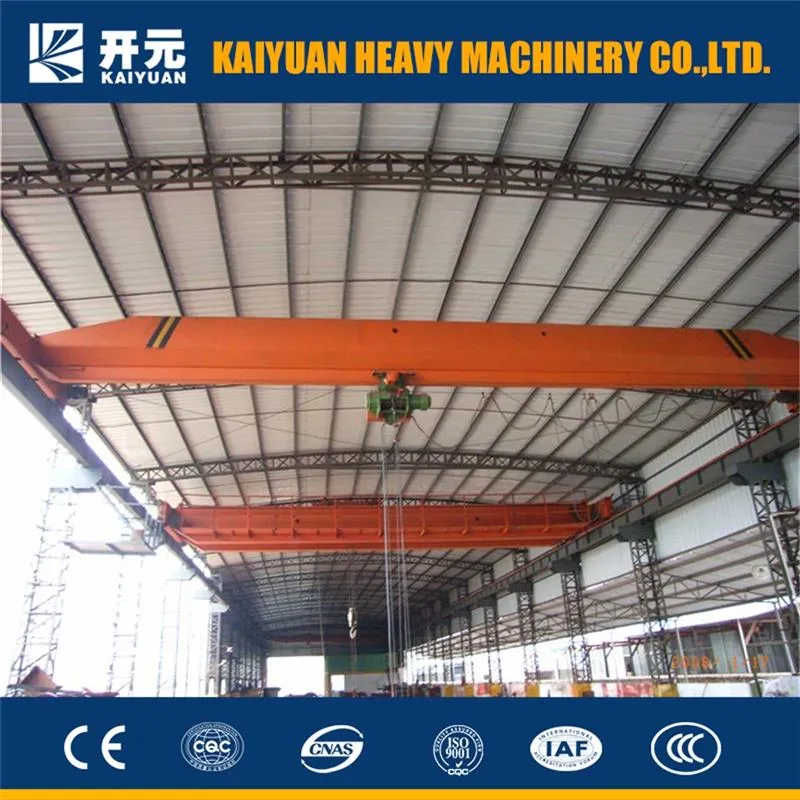

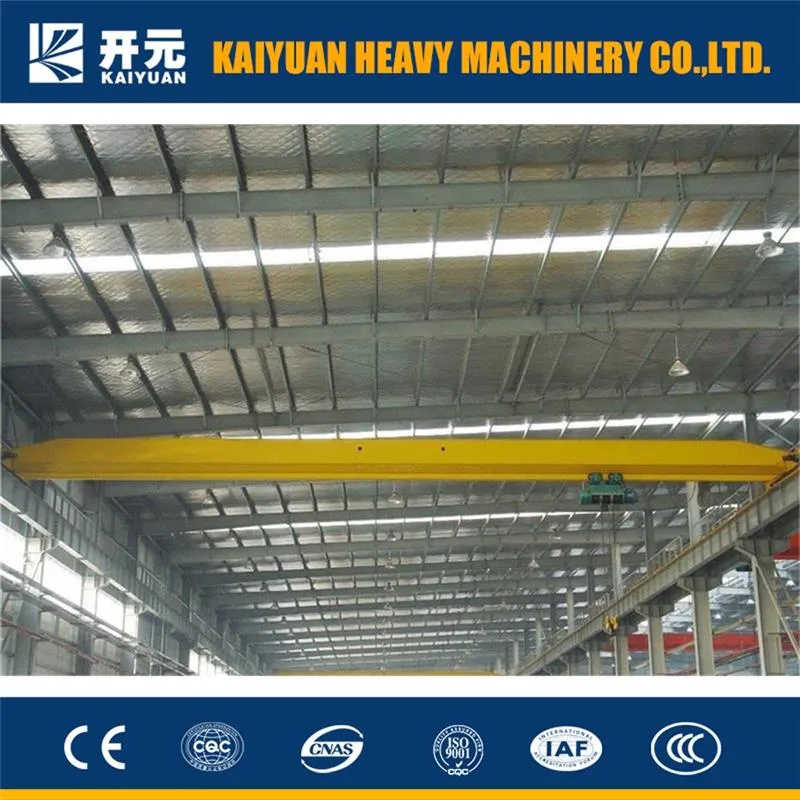

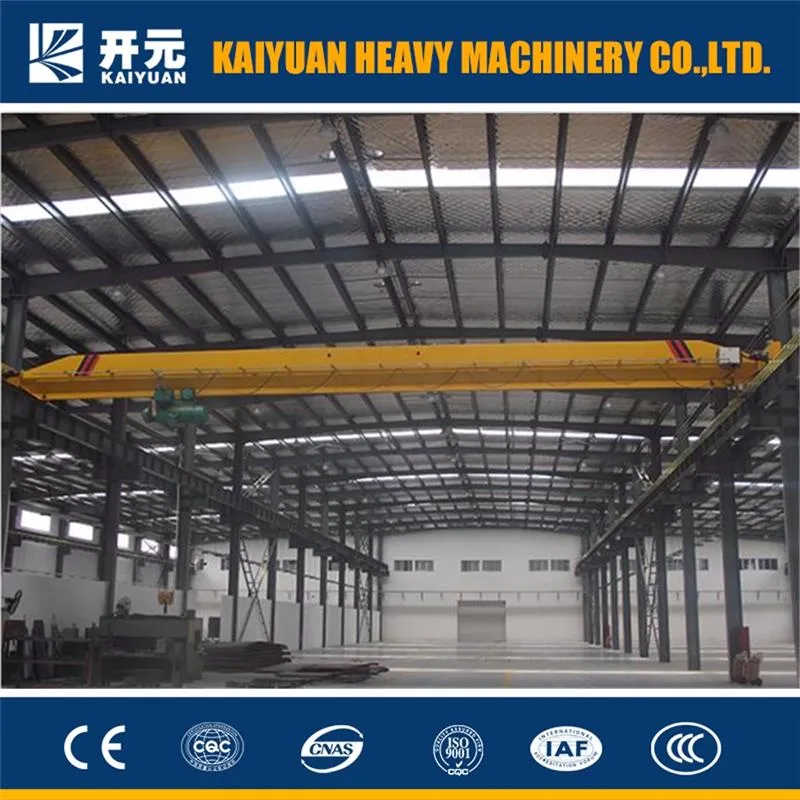

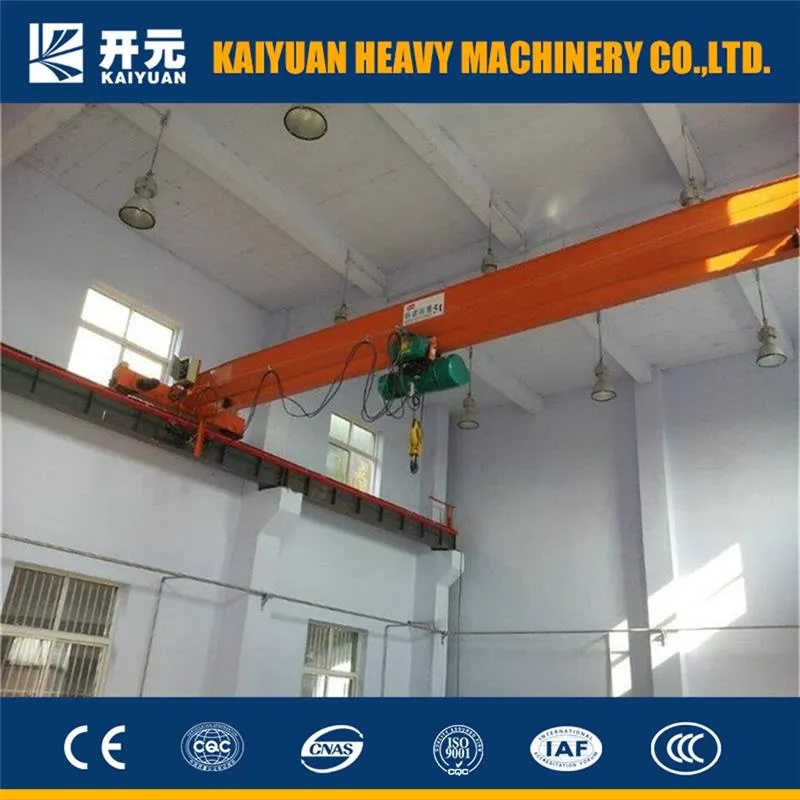

10T-7.5m~30m single girder electric hoist overhead crane for users
1.The electric single-girder overhead crane has the characteristics of rational construction and high rigidity.
2.The electric single-girder overhead crane is a kind of mini type hoisting machinery and it should proper matching use CD1 and MD1 type electric hoist.
3.The lifting capacity is between 1~20t, span is between 7.5~28.5m, classification group is between A3~A4 and the operating ambient temperature is between -25ºC ~ 40 ºC.
4.The electric single-girder overhead crane is widely used in factory, warehouse, stock ground and other different occasions to lift cargo. It is forbidden using in flammable, explosive and corrosive medium environment.
5.The products have two operating modes, they are remote control on ground and remote control in operating house.
| Main Parameters List | ||||||
| Crane Traveling Mechanism | Traveling Speed(m/min) | 20 | 30 | 45 | 60 | |
| Ratio | 58.95 | 39.42 | 26.51 | 19.44 | ||
| Motor | Type | Cone Squirrel-cage | Cone Squirrel-cage | |||
| Power(kw) | 0.8*2, 1.5*2, 2.2*2 | 1.5*2, 2.1*2 | ||||
| Rotary Speed(r/min) | 1380 | 1350 | ||||
| Hoist Lifting Mechanism and Traveling Mechanism | Eliectric Hoist Model | MD1 | CD1 | |||
| Lifting Speed(m/min) | 8/0.8, 7/0.7, 3.5/0.35 | 8, 7, 3.5 | ||||
| Span(m) | 7.5-28.5 or assigned | |||||
| Lifting Capacity(t) | 1-32 | |||||
| Lifting Height(m) | 6, 9, 12, 18, 24, 30 | |||||
| Traveling Speed(m/min) | 20, 30 | |||||
| Motor | Cone Squirrel-cage | |||||
| Work Duty | Intermediate Jc=25% | |||||
| Power Supply | 380V 50HZ 3P | |||||
| Wheel Diameter | Φ270, Φ400 | |||||
| Trail Width | 37-70 | |||||
WHY CHOOSE US
1. More than 10 years crane manufacture experience.
2. Unique International standard indoor warehouse for crane manufacture.
3. We have the senior crane design engineers, with professional design. And very expert crane mechanical and electrical installation engineer team.
4. Our crane sales team will help to supervise the crane whole production and seaport loading, we prefer to /confirm/i every small details.
5. We know how to shipment the crane in a very compact and reasonable way, save sea freight for our oversea crane client.
PACKAGE AND DELIVERY
Packaging Details: | packaging: 1. Electric parts are packed in iron box to reduce distortion in conveying; |
Delivery Day | Within 35 work days after receiving the deposit |
FAQ
1. Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
3. What's the max lifting capacity of the crane?
Thanks for your question. The max. Lifting capacity of our standard crane are up to 600 ton (the electric hosits are up to 80 t). If this can't satisfy your working requirement. Please contact us for special customized.
4. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
5. Can the crane work in hazardous environment?
Thanks for your question. .For hazardous environment, please consult our professional sales manager.
TIP OPERATION
How to order a crane, please look at here. More details or drawings, the better.
A. Lifting Capacity
B. Span
C. Lifting Height
D. Power Source
E. Other specials you give us will be more appreciated.
OUR SERVICE
§ Professional mechanical engineers and electrical engineers provide suitable solution only for you!
§ Engineers available to service machinery overseas.
§ We can offer about 12 moths maintenance service.
§ Recieved customer's message about the quality problems,related after sale service managers will help customer solve problems immediately.
COMPANY INFORMATION
Shandong Kaiyuan Heavy Machinery Co., Ltd.,a company specialized in hoisting machinery manufacturing, was established in 2006. It is a member unit of China Heavy Machinery Association. The company has passed ISO9001 International quality system certification and has independent intellectual property rights and industrial property rights, Class A manufacture license of special equipment and Class A special equipment installation and maintenance license.
The company covers an area of 70,000m2, including 30,000m2of plant construction area and 20,000m2 of outdoor area. It has various kinds of hoisting and handling equipment, with steel handling capacity of 10000t. The products are sold to 20 provinces throughout the country and exported to India, Ethiopia, Indonesia, Vietnam and Iran.
In the new period of development, the company will continue adhering to the quality policy of advanced technology, product quality, courteous serviced, customer satisfaction to achieve development innovation, keeping pace with the times and joint development.
