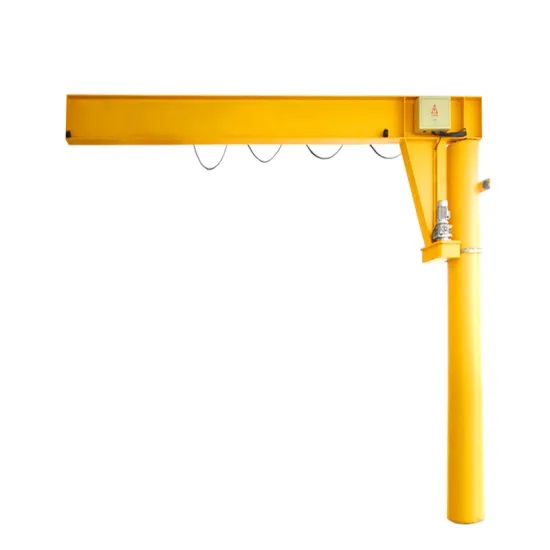

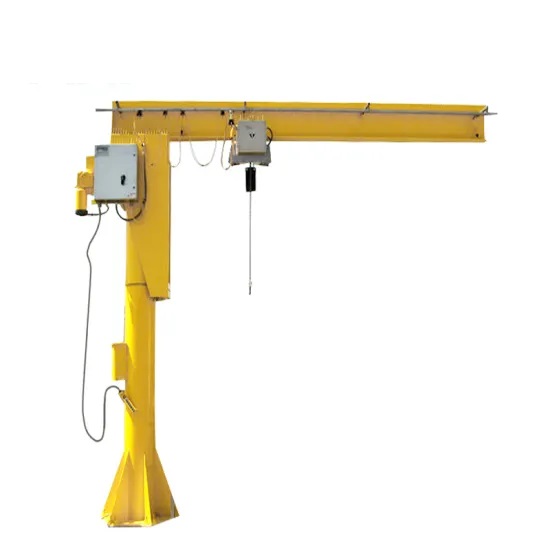

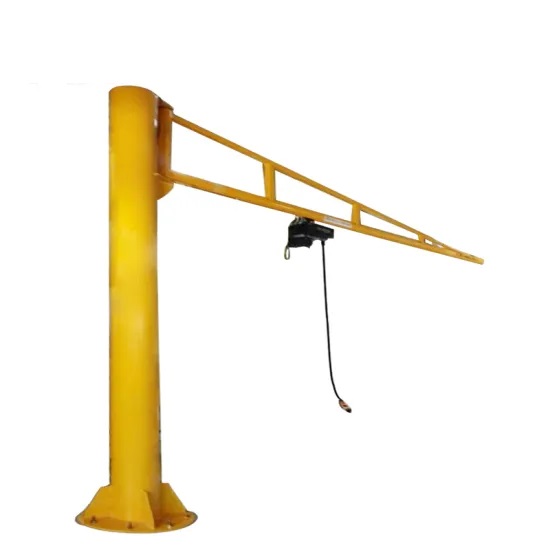

360 Degree Rotation Direction Pillar Mounted Cantilever Jib Crane
$3000.00 1
Qingdao
D/P D/A O/A L/C T/T
Wood Case
New
QB
GS, CE, ISO9001
Nucleon
General manufacturing

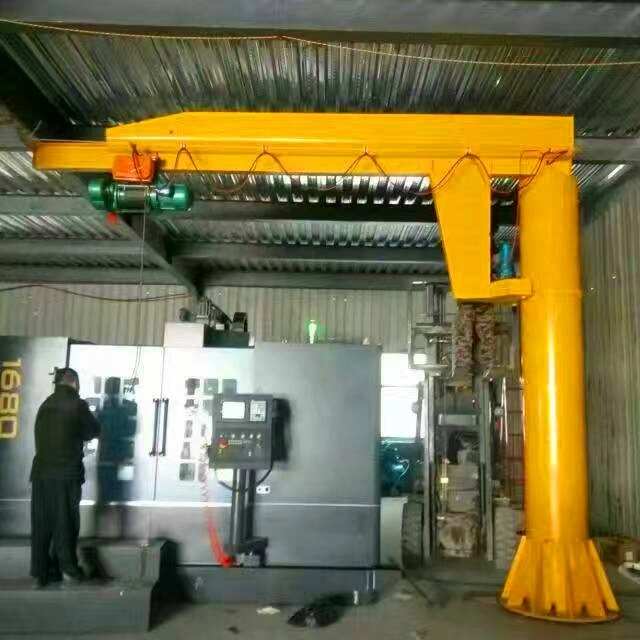

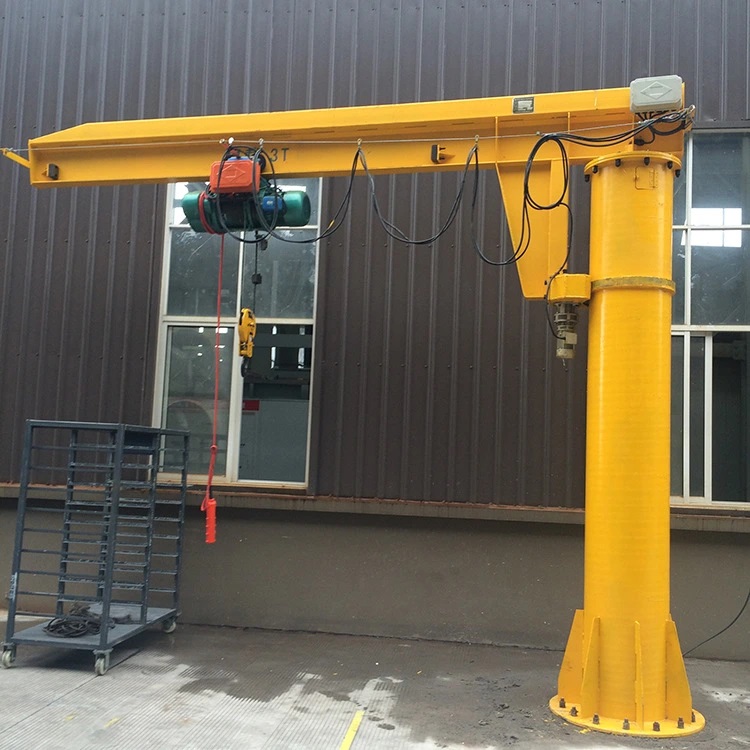

The QB model series floor mounted jib cranes are designed and constructed for industrial use . The jib crane boom is
fabricated out of a steel "S" or "W" shaped I beam and have removable end stops. A machined lower roller carriage is
housed in the jib crane head section which feature heavy steel side plates.The lower roller carriage is mounted on adjustable
tension bolts to allow 360 dgree field adjustments. The support column for the jib crane is constructed out of steel pipe with
a heavy base plate and reinforcing gussets. This type jib crane can be used both indoor and outdoor places.
It can be operated under three-dimensional environment by pendent push button or remote controller. Compared to other
lifting device, it is superior especially in the case of short-distance and concentrated lifting.
| Type | BZ0.25 | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 | BZ8 | BZ10 | |
| Lift Capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | |
| Max. Lift Height(m) | 3 | 3 | 3 | 3 | 4 | 4 | 6 | 8 | |
| Slew Angle(0) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
| Lift Speed (m/min) | Normal | 4;10;8 | 5;10;8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Slow | 1;2.5;0.8 | 1.25;2.5 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| Level Travel Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Slewing Speed (r/min) | 0.7 | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Lift mechanism | wire rope electric hoist or chain electric hoist | ||||||||
| Power supply | 380-420V/3phase/50hz or customized | ||||||||
| Control mode | Pendent push button control or remote control | ||||||||
| Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands. | |||||||||
