Good Quality Double Beam 10 Ton Gantry Crane Price with Hook sale Pakistan
$150000.00 1 1
New
MG
CE, ISO9001
NYBON
General manufacturing
Product Description
Good quality double beam 10 ton gantry crane price with hook
Good quality double beam 10 ton gantry crane price with hook also called gantry crane or goliath crane, it is a kind of track travelling
mid-heavy type crane, can be used where overhead runways are not practical, or in open areas where columns cannot be
accommodated. The top main girder is mounted on two A shape columns which are further resting on wheel mounted end
carriages.
This crane is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite
industry, construction industry, and engineering industry and so on.
It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so
on.
It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.
It could be special design and customize by clients' requirement.

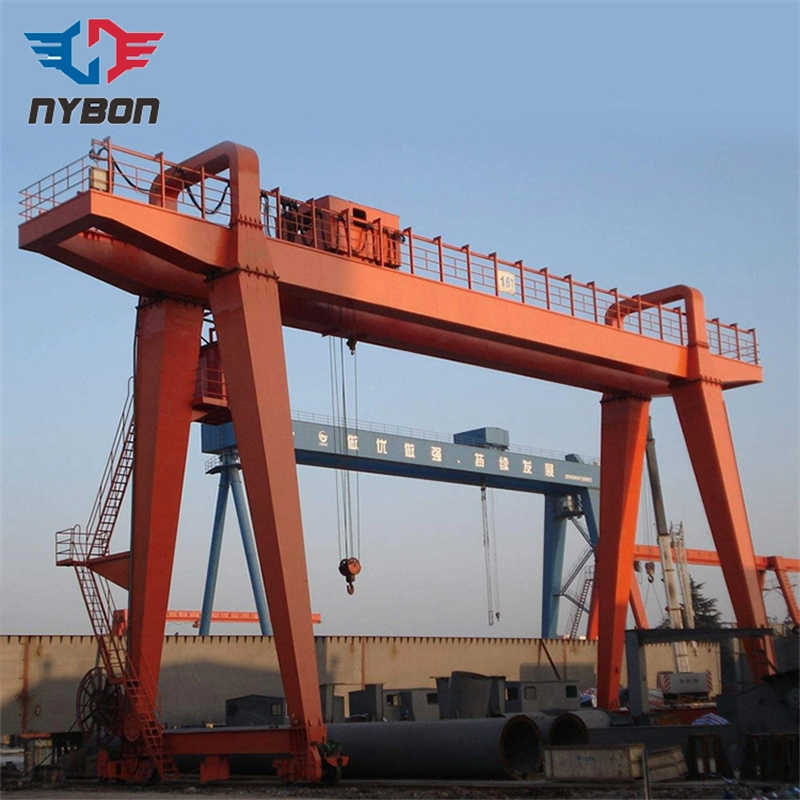

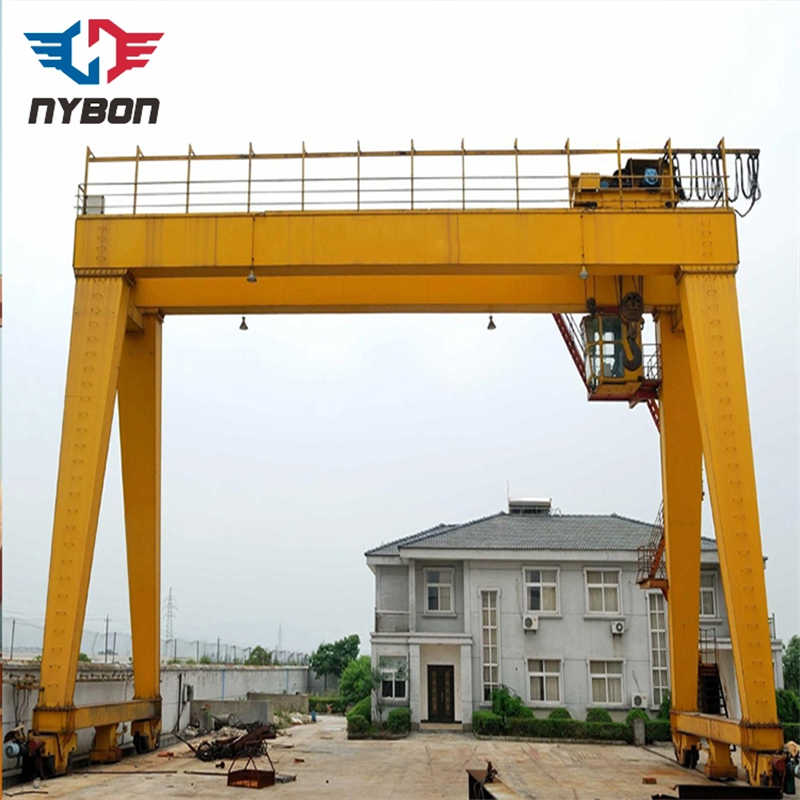

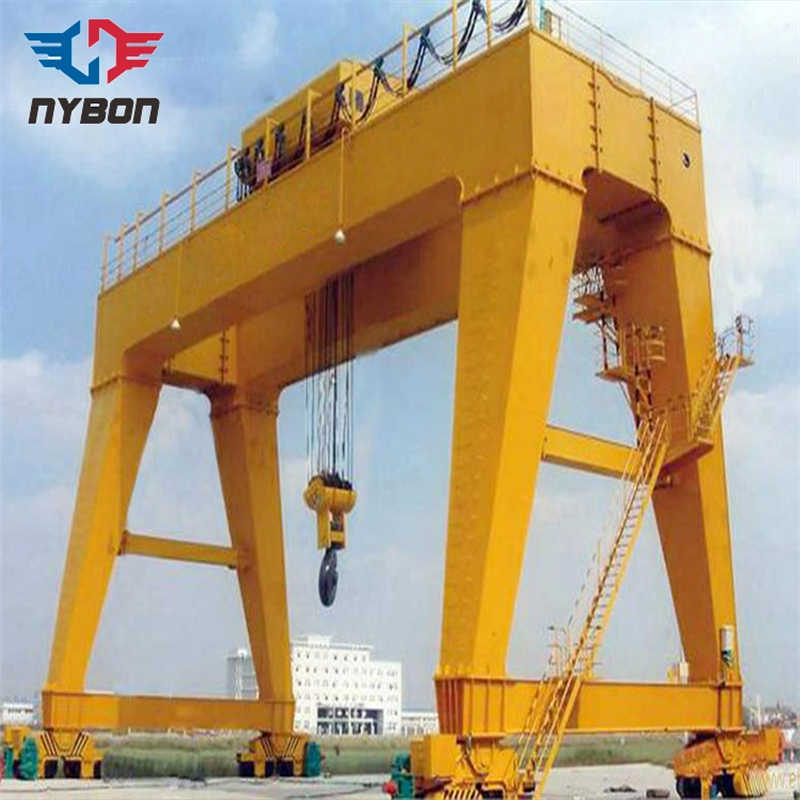

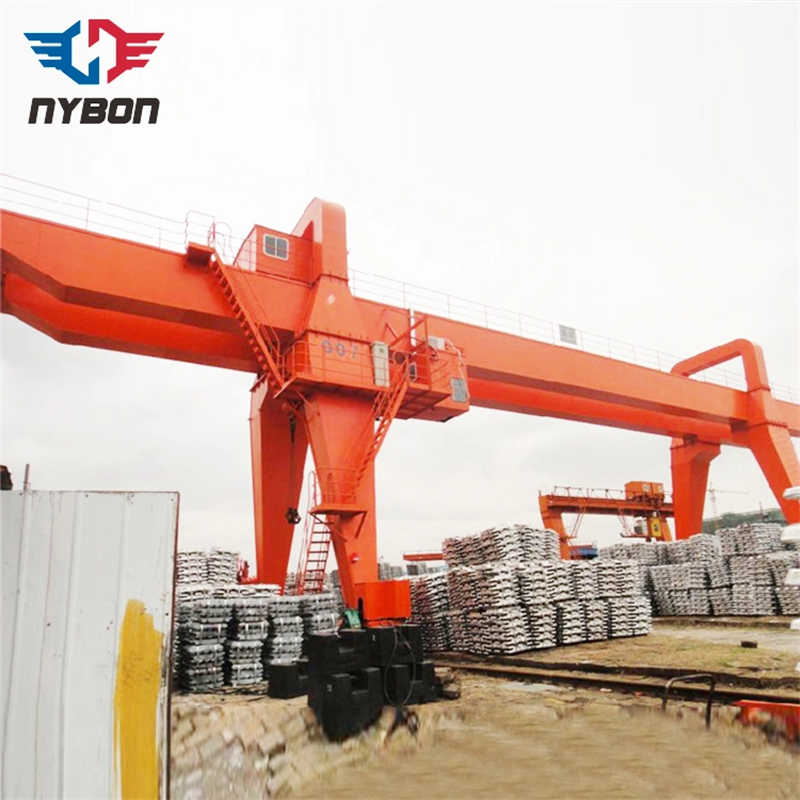

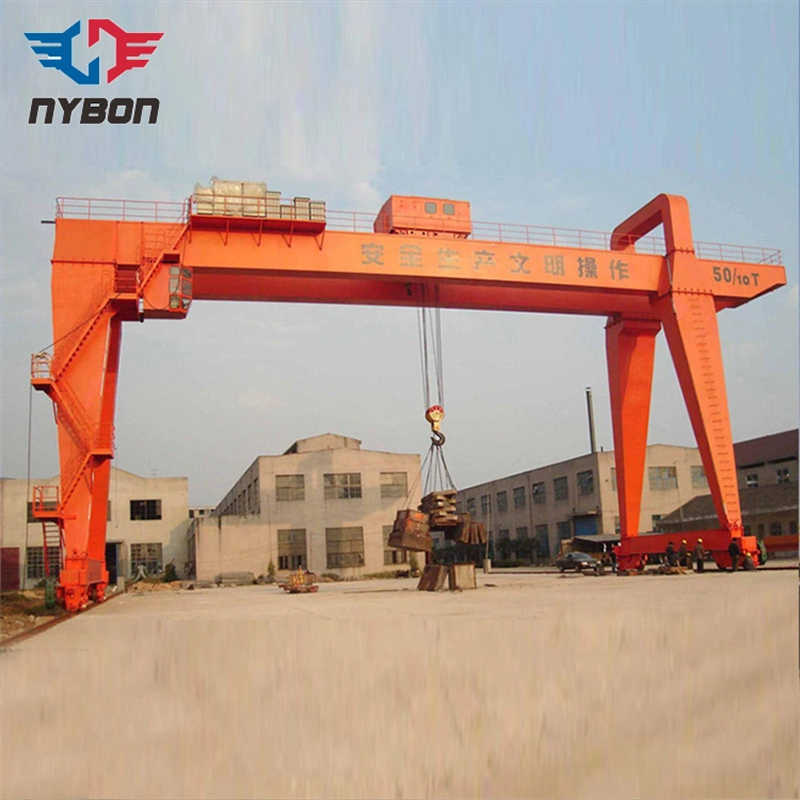

Parts show:
Main technical parameter:
| Rated load/ton | 50 | 75 | 100 | 150 | 200 |
| Span/m | 10-40 | ||||
| Lifting height/m | 30 | ||||
| Working class | A5/2M | ||||
| Lifting speed/m/min | 5.9 | 6.0 | 4.4 | 3.2 | 2.4 |
| Trolley running speed/m/min | 38.4 | 38.4 | 33.8 | 30 | 25 |
| Crane running speed/m/min | 30 | 30 | 30 | 30 | 30 |
| Dead weight/t | 112~185 | 148~220 | 172~265 | 215~300 | 245~380 |
| Number of wheel | 8 | 16 | 16 | 24 | 24 |
| Max. wheel pressure/KN | 288~375 | 210~255 | 255~310 | 230~285 | 295~355 |
| Steel track recommended | QU70 | QU100 | QU100 | QU100 | QU100 |
| Power supply | 3AC 220~480V 50/60Hz | ||||
