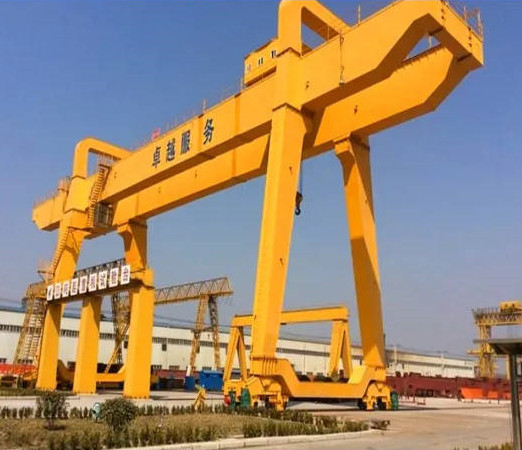

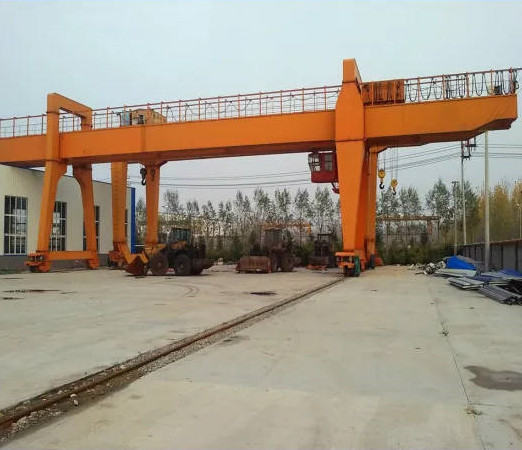

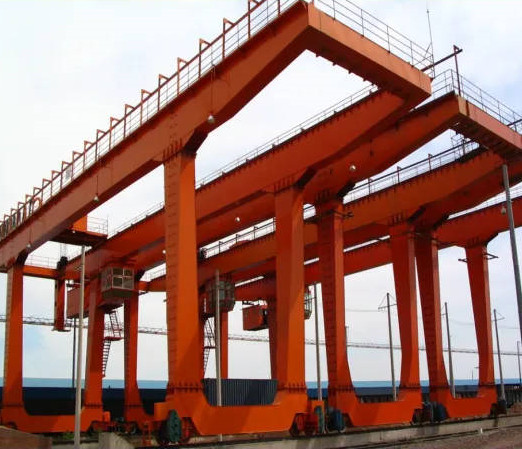

Double Girder Gantry Crane 32t/5t 50/10t for Lifting Steel Roll
$20000.00 1
Qingdao
D/P D/A O/A L/C
Packed by Plywood Crate and Plastic Woven Cloth.
New
MG
GS, CE, ISO9001
SHENG HUA
General manufacturing,Automobile industry,Oil and gas industry,Food processing industry,achitechive,Container handling,Aerospace,Warehousing logistics,Military industry
Double Girder Gantry Crane 32t/5t 50/10t for Lifting Steel roll
Product description

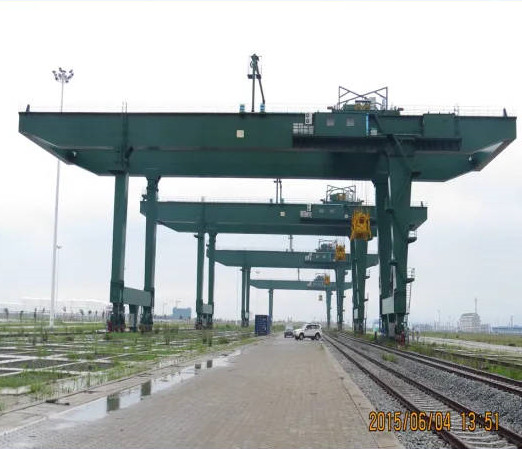

This double beam gantry crane is applied to open air warehouse or railways for loading and unloading as well as lifting work. Accompanied with particular lifting tools, it could be used for containers in the ports.
It is widely used in open warehouses, material stocks area, cement plant, granite industry, construction industry, engineering industry, railway station to lifting and loading unloading goods. It also can be used together with other lifting appliance for special purpose.
This machine uses AC frequency converter, PLC control and equipped with intelligent all Chinese "state monitoring control system". It is composed of beams; Crane traveling mechanism adopts separate drive. All mechanism is operated in the operation cabin; Crane power supplies are divided into cable and sliding wire, please choose one of them when you make an order with us.
Feature:
1)Reasonable structure
2)Favorable performance.
3)Smooth starting and stopping
4)Safe and reliable traveling.
5)Low noise, commodious cabin and good view.
6)Convenient maintenance, excellent exchangeability for parts and computers.
7)Saves electricity specifications.
| Lifting Capacity | t | 10 | 16 | 20/10.0 | 30/10.0 | 36/16 | 50/10.0 | ||
| Span | m | 11-35 | 22 26 | 26 30 | 32 | ||||
| Working System | Medium | Medium | Medium | Medium | Heavy | Heavy/ Medium | |||
| Lifting Height | Main | m | 11.5 | 10.5 12 | 10.5 | 10.5 | 11.5 | 12 | |
| Aux | 11 | 12 | 12 | 13 | |||||
| Speed | Hoist | Main | m/min | 18.4 | 12.3 | 9.2 | 10.4 | 10.4 | 6 |
| Aux | 18.4 | 18.4 | 12.3 | 18 | |||||
| Trolley Travelling | 43.8 | 44.5 | 44 | 44 | 53 | 38.13 | |||
| Crane Travelling | 54.6 51.2 48.4 | 51.2 49.1 | 51 | 51.2 | 51.1 | 43.8 | |||
| Total Weight | t | 63.2--135 | 75.5-105.5 | 79-132 | 125.4 130 | 142 148 | 204 | ||
| Max. Wheel Pressure | t | 23-40 | 36.4-23 | 30-42 | 35 36 | 38 39 | 48 | ||
| Rail Recommended | P43 | P50 | P50 QU70 | P50 | P50 | P50 | |||
| Power Source | 380V 50Hz 3phase | ||||||||
