40 ton gantry crane for sale 40 ton gantry crane price discount

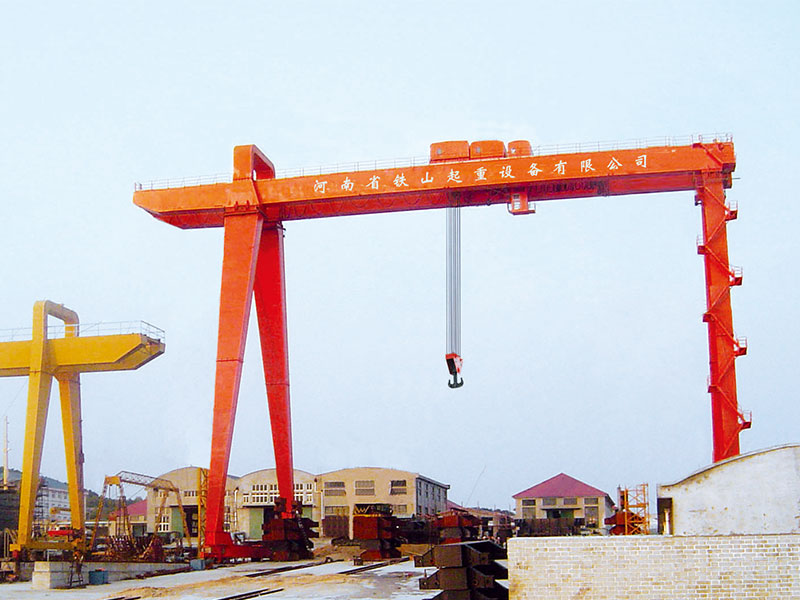

MG gantry crane (Iron Mountain Crane) has many significant advantages, making it a highly favored lifting equipment in the industrial field. The following are its main advantages:

Wide scope of work and large operating space: adopting a box shaped double beam welding structure, this design not only increases the working space, but also facilitates transportation, installation, and maintenance. The double beam structure enables the crane to cope with various complex working environments, thus having a wider operating range.

Sturdy and Durable Structure: The advantage of welded structure makes the crane more sturdy and durable, able to operate stably for a long time, and reduce faults caused by structural problems.

Stable and safe operation of the car: The car adopts a conductive device with irregular steel rail cables to ensure stable and reliable electrical connections during operation, greatly reducing faults and safety hazards caused by conductivity issues.

Convenient component replacement and quick maintenance: The components of the crane are designed to be standardized, serialized, and universal, making replacement and maintenance more convenient and efficient. This design also improves the flexibility and applicability of the crane, which can meet the needs of different users.

Adapt to different working environments: The crane provides two power supply forms: cable drum type and sliding contact line type. Users can choose the appropriate power supply method according to their actual needs to ensure the normal operation of the crane.

Flexible and convenient operation: The driver's cab has a wide field of view and is equipped with a linked control console, making the operation more flexible, smooth, and comfortable.

Diverse specifications and strong applicability: The MG double beam hook gantry crane has multiple specifications to choose from, suitable for various scenarios such as open-air warehouses, material yards, railway freight stations, ports and docks, and can be customized according to the specific needs of users.

The parameters of MG gantry crane can be customized according to the specific needs of different users. Here are some common parameter ranges:

Lifting capacity: Lifting capacity is an important parameter of gantry cranes, with common specifications including 20T/5T, 32T/8T, 40T/10T, 50T/10T, 75T/20T, etc. The maximum lifting capacity can even reach 250t. This means that the crane can adapt to various lifting needs from light to heavy.

Span: Span is also a key factor affecting the performance of cranes. Common span specifications include 13M, 15M, 17M, 18M, 19M, 20M, 22M, 23M, 30M, etc. The maximum span can reach 50m. Users can choose appropriate spans and cantilever lengths based on on-site conditions.

Lifting height: The lifting height is the maximum height that a crane can lift objects, and common specifications include 6M, 9M, 12M, 16M, 24M, 30M, etc. According to the homework requirements, an appropriate lifting height can be selected.

In addition, the MG gantry crane also has other important parameters, such as working level (A5~A7), crane operating speed (20m/min~60m/min), trolley operating speed (20m/min~40m/min), and trolley lifting speed (5m/min~16m/min). These parameters can be customized and adjusted according to the actual needs of users.
