Custom Production Line Proch Shapped Large Coverage Vacuum Glass Lifter
$4000.00 1 1
Qingdao
L/C T/T
New
TYGantry
CE, ISO9001, SGS
TOYOCC
General manufacturing,Metal production industry,Automobile industry
Product Description
Description
Porch-Shaped Overhead Crane
The outlooking looks like a porch; the vacuum lifter runs along the travelling beam of the porch; the travelling beam runs along the maim beam of the frame.

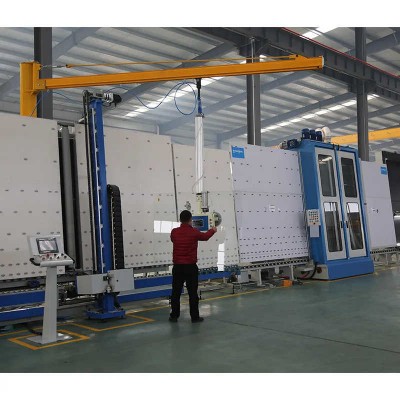

It is widely used in insulating glass line, lamination line, vertical CNC, tempering line and also cutting line, it with advantages of space-saving, stable to operate, manpower-saving, large area coverage.
The Porch-Shaped Overhead Crane takes your glass sheet to the production line and the right position that you'd like. It equipped with a vacuum lifter to operate your glass sheet up and down, rotate and turn over, quite easy to operate for one worker.
Vacuum glass lifters

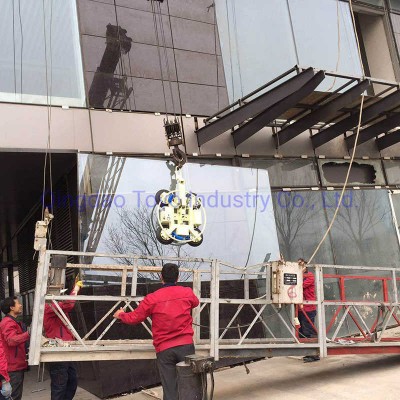

Vacuum glass lifters have become widely used for lifting glass sheet in the factory and glass wall installation outdoor.
Safety and efficiency are two of the main reasons for using vacuum glass lifters. Not only does this equipment allow for a reduction in the number of personnel required to move piping, it minimizes the risk or injury to ground personnel. Glasses are moved safely and stacked without extra personnel in the in unloading area.
Our vacuum glass lifters are used Thomas brand (the United States) as the vacuum pump and Japan SMC as the control system of the electrical component, the vacuum pads are imported and made by the special silicones, it features with no crack at -20 degrees and high temperature resistance of 90 degrees.
When the equipment is suddenly cut off or the air pipe bursts, the control system will automatically lock the vacuum to ensure that the glass will not fall for 10-15 minutes.
Features
Customized pillar height, frame length and travelling beam width
Customized safe working load
Both workable for the vacuum lifter or the hoist
Extension vacuum lifter arms for different configurations
imported vacuum pads with temperature resistance -20 degree to 90 degree
| Portal-frame Shape Vacuum Glass Sucker | |
| Model: RSY-LMJ350-4,450-4 | Operating weight: 350,450 KG |
| Work range: Rotate 360°;turnover | Vertical lifting range:500mm(customized) |
| Control system SMC(Japan) | Operating air source3:0.6-0.8Mpa |
| Regular size:Length6000, width6000(customized) | Sucker No.:4/6 |
| Sucker material: white silica gel, suitable temperature:-40°to90°;leave no trace | |
| Advantage: Larger coverage, power equality, suitable for large glass and easy to use. | |
| Function: Mainly used in laminated glass production line, tempered glass, Hollow glass, glass edge grinding machine, loading and unloading glass ect. | |
Certification
SGS is the world's leading inspection, verification, testing, and certification company. It is recognized as the global benchmark for quality and integrity. In 2020, Oct 15th, authorized by our client, we invited the SGS agency to control quantity and quality and meet all relevant regulatory requirements.
