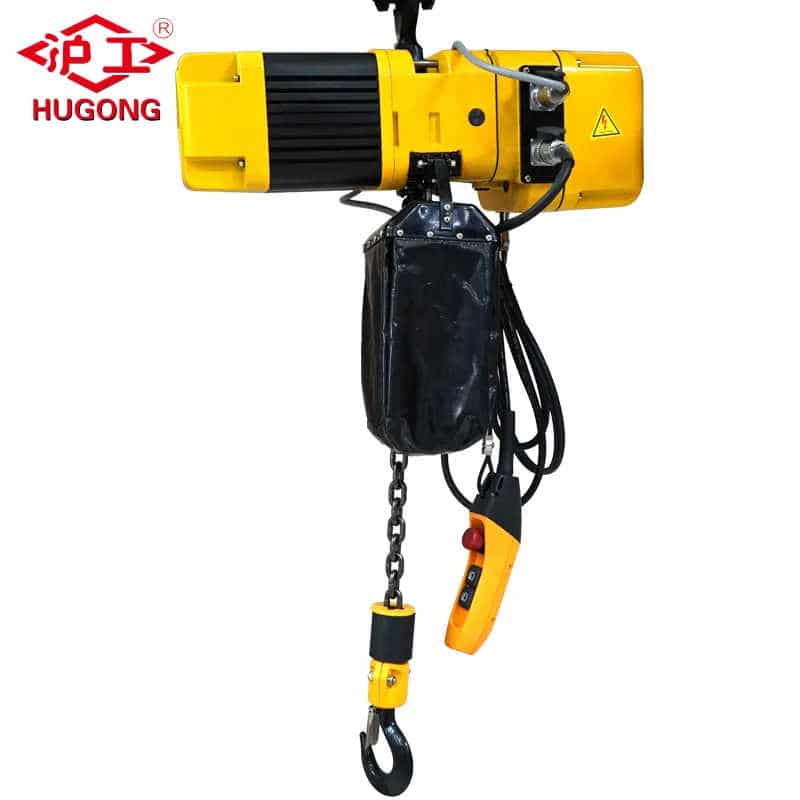

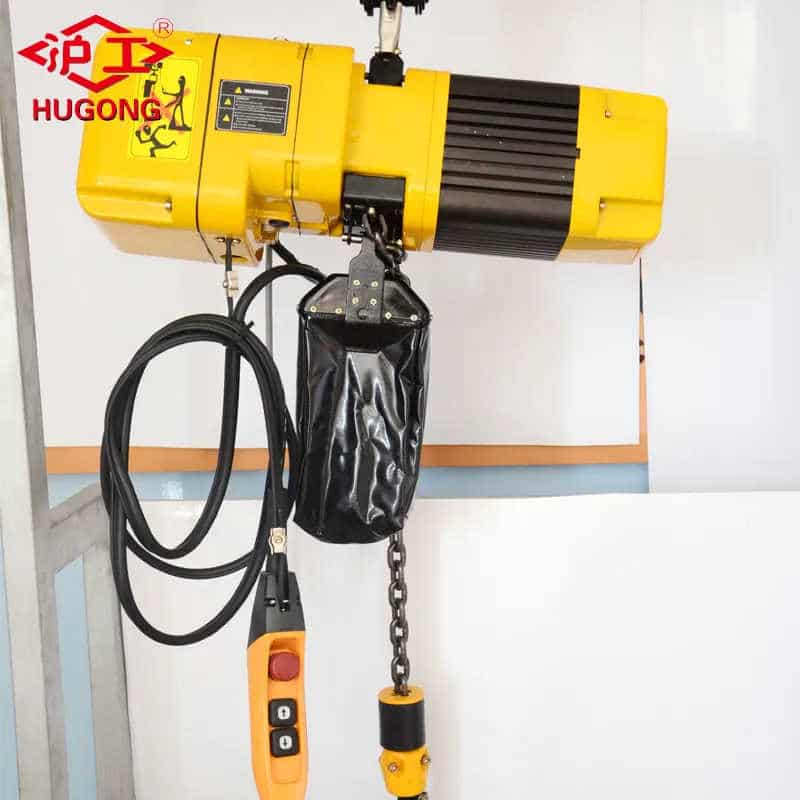

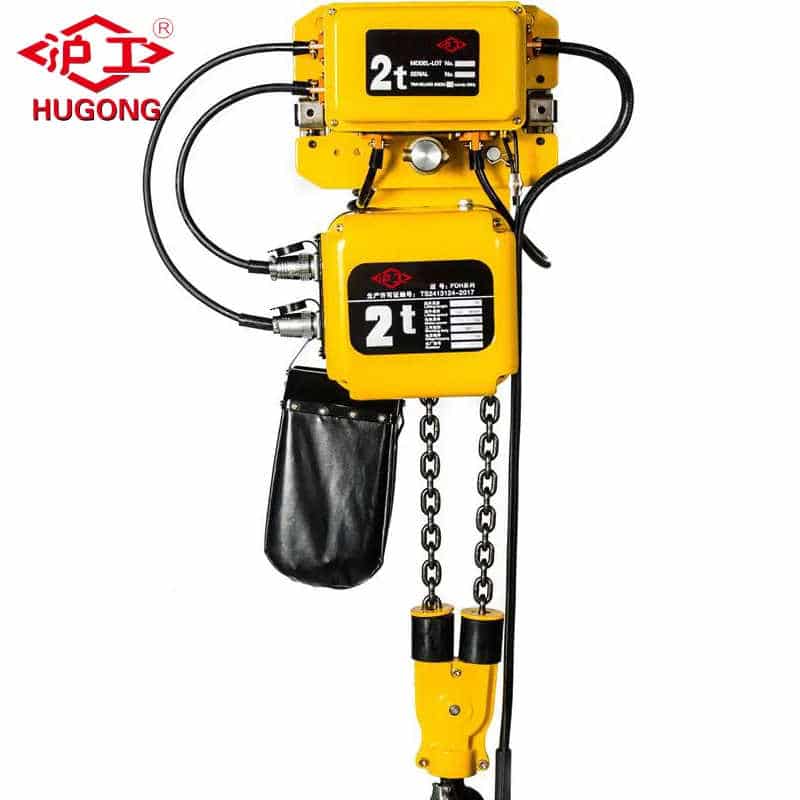

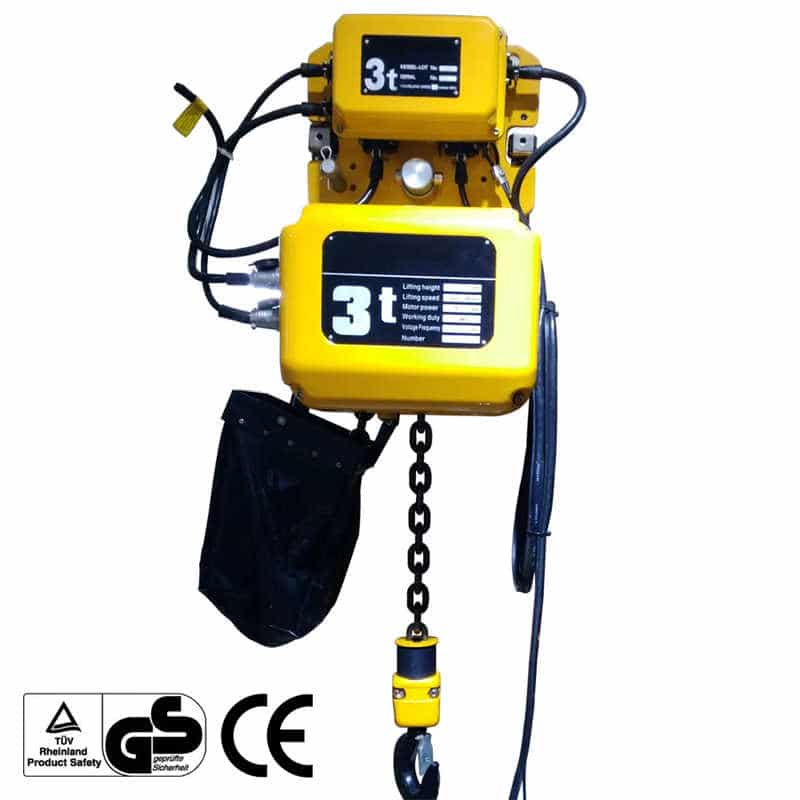

1ton 2ton 3 Ton Low Headroom Electric Chain Hoist with Remote Controller
$950.00 1 set
Qingdao Shanghai
L/C T/T
New
PDH-3
CE, ISO9001
HUGO
General manufacturing,Metal production industry,Renewable energy industry
Product Description
Features
1. The machine shell of mini electric chain hoist is made of aluminum alloy.
2. The aluminum molding ontology integral
3. High-strength imported load chain
4. High safety and reliablity
5. The novel structure
6. Emergency stop switch has the protection function of any emergency
7. Adopts the most advanced square air connector
Brief introduction
1. Working class is M5, can be worked for a long time. Small size, light weight, compact housing, excellent protection from water and dust IP55. Double braking system, adopting the American Leibei stowe brake system and electricmagnetic brakes to get high precision.
2. High strength gear material is heat-treated and noise range is 60-65db. The chain adopts FEC80 ultra-treated steel chain. Brake device is light, beautiful and durable.
3. DC electricmagnetic brake, overheat protector, built-in electric cabinet, 24v low voltage control and patented upper and lower limit switch system secures the performance. Maintenance
Is simple, easy to operate.
| HUGO Brand PDH Electric Chain Block | |||||
| Item | PDH-0.5 | PDH-1 | PDH-2 | PDH-3 | PDH-5 |
| Capacity (T) | 0.5 | 1 | 2 | 3 | 5 |
| Test Capacity (T) | 0.625 | 1.25 | 2.5 | 3.75 | 6.25 |
| Standard Lifting Height (M) | 3 | ||||
| Single Speed (m/min) | 7.6 | 6 | 6 | 6 | 3 |
| Double Speed (m/min) | 7.6/2.5 | 6.0/1.7 | 6.0/2.0 | 6.0/2.0 | 3.0/1.0 |
| Power (KW) | 0.9 | 1.1 | 1.1 | 3 | 3 |
| Voltage (V) | 380 | ||||
| Frequency (HZ) | 50 | ||||
| Chain Turns | 1 | 1 | 1 | 1 | 2 |
| Chain Size | 6.3*19 | 8*24 | 8*24 | 11.2*34 | 11.2*34 |
| Feature: 1. Siemens Motor 2. FEC G100 lift chain 3. Overload alarm 4.Up limiter | |||||
